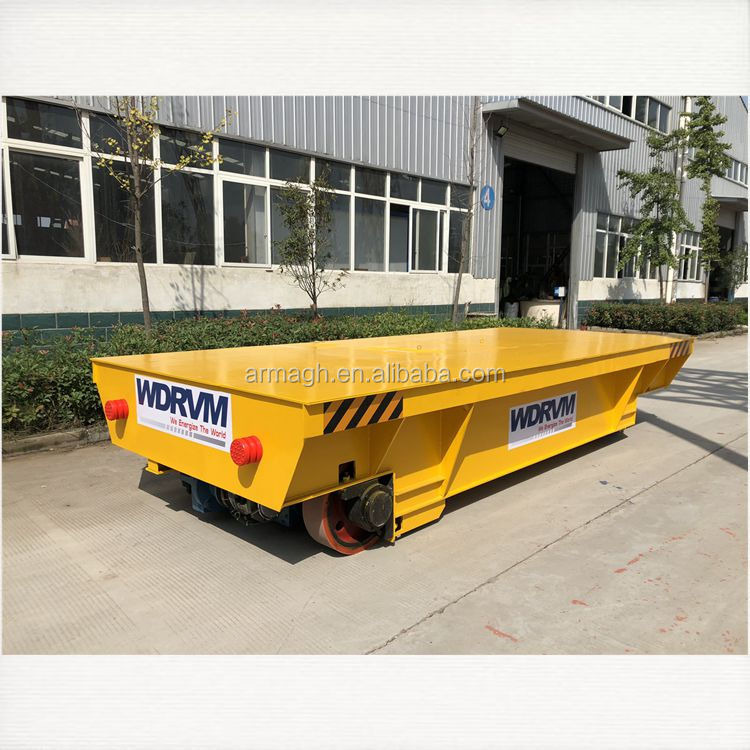

Flat Electric Transfer cart has a simple structure, convenient use, large carrying capacity, not dirty not to hit, easy maintenance, long service life, etc, because of its convenience, husky, economic, practical, easy to clean, and many other advantages, become the enterprise internal and factory and factory of choice for short distance between the fixed point often carry heavy transport.Electric flat car is mainly used and moving lifting water billet car.Electric kiln loading car and electric kiln discharging car used in brick factory, kiln factory, refractory factory, ceramic factory and baking factory;Electric transporter for engineering, tunnel and sanitation, electric dump truck, electric sanitation truck, etc.Electric transport vehicles and electric dump trucks are also used in flour mills, concentrators, foundries, chemical plants, furnace charge factories, farms and so on.
All flat cars can be equipped with industrial wireless remote control devices.
Edit operating rules for safe operation of railway flat car
1. Before entering the workshop, workers must wear all labor protection articles and protective articles, otherwise they are absolutely not allowed to enter the workshop.
2. Before using electric flat cars, it is necessary to check whether the exterior of the vehicle is intact, whether the transmission mechanism and its lubrication condition are normal, clear the production waste or large obstacles stored on both sides of the track and in the middle, as well as objects that may affect the normal use of electric flat cars, and send out the use signal before starting the work.
3. During the operation of electric flat cars, avoid sudden start and stop to prevent danger and safety accidents caused by slipping of inertial load.
4. During operation, two people should work at the same time. One should operate the electric flat car, and the other should pay attention to the load on the car and surrounding conditions, and remind the past staff to pay attention to safety.
functions&advantages
1.With lifting holes, electric powered flat cart is convenient to shipment;
2.The electric powered flat cart has a feature of stable start, big starting power, long lifetime;
3.The electric powered flat cart can run on the C-form track or S-form track;
4,Dual-mode power supply
5.Ultra low chassis
6.The structural parts are made of Q235B rolled steel plate, 1.5 times load design and 1.25 times load test.
7. With conventional electrical protection: over current, over voltage, under voltage, short circuit, overheating, grounding, leakage and other protective devices.
t
transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart
t Product Parameter
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-50T | KPT-100T |
| Rated load (T) | 2 | 5 | 10 | 16 | 20 | 50 | 100 |
| length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2500 | 2800 |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 650 | 850 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 4200 | 4900 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ500 | Φ600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 |
Product Details Show
Polyurethane Wheel
Polyurethane wheel adopts cast steel inside, polyurethane coating outside, it mainly applied in the trackless transfer cart It can be run on cement floors without rails and can reduce the damage of ground.
Stop buffer
The polyurethane buffer consists of three series, according to connection can be divided into: stud (JHQ-A), plate type (JHQ-B), flange type (JHQ-C) series of dozens of specifications respectively, corresponding to different buffer capacities, for the customer to choose, can separate non-standard design and manufacture.
Protection of motor
The power circuit is protected by short circuit with a fuse, and the contactor is connected to the power with a contactor.
transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart
Packaging & Shipping
1. Holst and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and Impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
Company introduction
Henan Armagh co., LTD. By virtue of scientific management system, convenient transportation conditions, strong production capacity, advanced detection means and strong sales network, to produce high quality, beautiful appearance lifting products to serve large and medium-sized enterprises at home and abroad.Company has a sound quality assurance system closely, the product research and development, design, manufacture, process, quality inspection, after-sales service and other links are covered in the quality assurance system under the control of, in the elaboration structure, energy conservation, environmental protection, safe and reliable, to adopt new technology of new materials and other aspects, make the product quality level enhances unceasingly, product marketing all over the world.
