Home /Products/Material Transfer Trolley/Industry Material Transport Electric Trackless Transfer Trolley 20 Ton

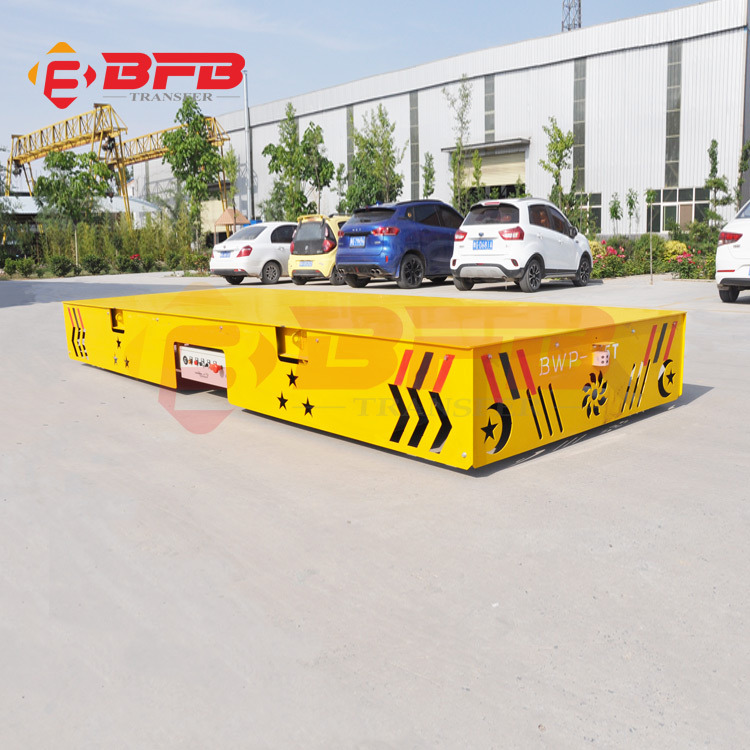

Industry Material Transport Electric Trackless Transfer Trolley 20 Ton

1.0 Sets
MOQ
$4,500.00(1 - 4 Sets) $4,000.00(>=5 Sets)
Price
Industry Material Transport Electric Trackless Transfer Trolley 20 Ton
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Die Transfer
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 2 Years
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Warranty: 2 Years
Product Name: Material Transportation Electric Trackless Transfer Cart 20 Ton
Key Words: Trackless Transport Cart
OEM: Accepted
Running Speed: 0-20m/min
Power Supply: Battery Powered
Wheel Quality: 4 Pcs
Motor: Double Motor Driven
Capacity Load: 1-500 Ton Capacity
Certification: CE, ISO9001,SGS
Application: Industry ,factory And Working Line
After Warranty Service: Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea
After-sales Service Provided: Field Installation, Commissioning And Training
Basic Infomation
Certification: CE, ISO9001,SGS
Payment & Shipping Terms
Packaging Details: The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Supply Ability: 600 Set/Sets per Year Welcome to contact us
Product Description
Product Description

Material transportation electric trackless transfer cart 20 ton

These Material transportation electric trackless transfer cart 20 ton and built to realize their utmost working flexibility.Because they have no predefined path and can steer in any direction and move on any kind of floor. And these transfer cart are very useful to bring the heavy loads where overhead cranes cannot arrive.

Material transportation electric trackless transfer cart 20 ton

The features as following:

Material transportation electric trackless transfer cart 20 ton

1. The transfer cart is battery powered, they represent the best solution for all those appliances with delicate handling problems in limited places.(360 degree turning flexibly)

Material transportation electric trackless transfer cart 20 ton
2. The trackless transfer cart is very flexible since it can move freely around the plant as indoor as outdoor.

Material transportation electric trackless transfer cart 20 ton
3. It is equipped with non-marking wheels to avoid any mark on floor.(Imported PU wheel or customized)

Material transportation electric trackless transfer cart 20 ton
4. Easy operation make transfer cart perfect to meet the most important requirements: where space is very limited and paths are strictly constrained.

Material transportation electric trackless transfer cart 20 ton

5. Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request.Material transportation electric trackless transfer cart 20 ton

Want more details,please click Material transportation electric trackless transfer cart 20 ton

Detailed Image

Get more parts details,click Material transportation electric trackless transfer cart 20 ton

Advantage
1.   High level automation(self propelled/steerable)
2.   The largest capacity can reach to 500t
3.   Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
4.   Robust sturdy transfer cart frame
5.   AC/DC electric engine , diesel engine or pneumatic engine
6.   Excellent gear reducer and motor with high quality, assemblied together perfectly
7.   Remote control&hand pendant control make the opration more convenient.
8.   The speed can be adjusted
9.   Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment
Product Parameter
Modle
BWP-2T
BWP-10T
BWP-30T
BWP-50T
BWP-80T
BWP-100T
Table Size (m)
2.0*1.5*0.45
2.3*2.0*0.55
3.5*2.2*0.7
5.5*2.6*0.8
6.5*2.8*0.95
6.6*3.0*1.2
Power
Maintenance Free Battery
Wheel Base
1080mm
1650mm
1650mm
2000mm
1950mm
2000mm
Wheel Dia.
250mm
350mm
450mm
600mm
600mm
600mm
Running Speed
0-20m/min
0-20m/min
0-20m/min
0-20m/min
0-20m/min
0-20m/min
Motor Power
2*1.2kw
2*2.2kw
2*5.5kw
2*7.5kw
30kw
40kw
Battery Capacity
250Ah
250Ah
450Ah
500Ah
800Ah
1000Ah
Battery Volatge
24v
48v
48v
48v
72v
72v
Max Wheel Load
14.4Kn
42.6Kn
110.4Kn
174Kn
185Kn
190Kn
Reference weight
2.3t
4.2t
6.8t
8t
14.6t
26.8t

Remark: The technical parameter of the trackless transfer cart only can be make reference above.All can be customized manufacturing as per your true demand. Please contact us if any doubt. Our professional engineer will help you solve the transfer cart problems in any time.Material transportation electric trackless transfer cart 20 ton

Want more product parameter,click Material transportation electric trackless transfer cart 20 ton
Packing & Delivery

Cart Packing

The transfer cart normal package is plastic cloth(Size: L*W*H). If export to European countries or container is too tighter,we will
packed it according to customers special request.

Part Packing

The parts are housed in wooden boxes of the right size.The wooden box has good corrosion resistance, high strength, and has moisture and shockproof functions.

Container Loading

The transfer cart are shipped to proper container as per the cargo size, LCL, 20', 40', FR container and so on.
Customizable solution to meet any demands
We have the long term cooperative forwarder, and the proper transportation solution and economic price will be provide and make you at ease with rich experience.
Our Company
Related Products

    Trackless Transfer Cart                   Rail Transfer Cart                    Coil Transfer Cart                   Ladle Transfer Cart

      99.8% Response Rate                        98.6% Response Rate            95.3% Response Rate           90.2% Response Rate

These points we need to learn:


1.The load capacity of the transfer cart is                       ton.

2.The table size is                  mm (L) *                   mm (W)*                    mm (H).

3.The voltage is                 V,                    HZ, 3 phase.

4.The running time is                          hours per day.

5.The running distance is                    m per time.

6.The transfer cart runs on the rails or common floor?

7.Whether exist turning?

8.Whether has other special requirement?

You can copy the above options and click here to select your specific requirement for the transfer cart to send us.And then the proper solution and price will be sent to you.
