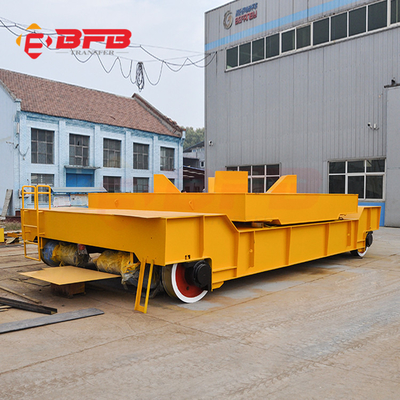

The kinds of customized plc control cable drum power steel tube transfer cart, AC 380V voltage. In order to avoid the impair of cable, the cable drums are equipped together. Due to the limitation of cable length, it is suitable to be used in short distance transport system.it is a common equipment in workshop due to its simple structure, low price.
Our Design Concepts
In order to meet industrial transport demand, we design the kinds of steel tube transfer cart, which makes the transporting more convenient with high using frquency. What’s more, the safe protection has been done in many points, which not only promote safety factor but also get good assessment from our client all over the world.
The steel tube transfer cart can be used in not short distance transportation, it has no limited using frequency.
Its application range includes: port transport,car field, steel, iron, heavy industry, light industry, chemical, mine, ship, project, spaceflight, coal, nuclear energy, hydraulic engineering, etc.
For material transport: coil items, transformer, shaft, reel, steel ladle, steel structure, steel pipe, mould, beam, container, heavy equipment, Aluminum product, compressor, polycrystalline silicon, motor, coil, scrap, pallet...
All can be customized as per customers’ requirement.And our business is meeting your business need, hope our professional team can help you well with rich experience.
The kind of cable drum steel tube transfer cart gets power AC380v through the device of cable drum which is installed at the bottom of the cart. The motor is controlled by the power through AC control system. By the principle, we can make the trackled cart to start, stop, goforward, backforward etc.
Of course, the power supply are chosen as per your working environment, the proper solution will be recommended to you after knowing your plant. hope rich experience (more than 15 years) can help you well.
The cart frame is two longitudinal beam, several beams with steel panel welded together, which adopts box beam structure according to the crane principle and combined with the design of the cart. Its main feather: large load bearing, little table deformation, long service lifetime..
About the rail wheel, it is single rim of corner case, the material is ZG55, or can be customized as per your demand. It can improve the load capacity and install easily. And the wheel are manufactured and assemblied by ourselves.
The lifting hole are installed on the transfer cart for convenient transporting. Especially, it can be lifted and moved after the structure finished.What’s more, it makes the appearance more delicate and beautiful.
For safe running, it is installed on the cart, it will ring continuously to warn someones when the care start running. Of course, the other parts can be installed, as dead man stop, emergency stop, anti-colliding switch... all can be meet only you’d like by our professional team.
The curl torque is large adjustment range, higher synchronism, which makes the working and operation more neatly and easily. And the cable arranger can be installed to arrange the cables if the distance is long. (>=50m)
Model | KPJ-2T | KPJ-10T | KPJ-20T | KPJ-30T | KPJ-50T | KPJ-63T | KPJ-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size(mm) | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 500 | 550 | 600 | 650 | 700 | 800 | 1200 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 15 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Click here to learn more!
Company Profile
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer vehicles as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer cart | KPJ | cable drum | Running distance | ||
| Busbar Powered Handling cart | KPC | Busbar | Working shop | ||
| Towed Rail cart | KP | Tractor | 1-100t | Working shop | |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment | |
| Trackless Handling Machine | BWP | Battery | Working path |
1.Q: Whether you product can be customized?
A: Sure. All our products are customized as per customers’ requirement, because different products are with different requirements of specification. The proper solution will be provided according to your true demand.
2.Q: How can I operate the steel tube transfer cart?
A: Please don’t worry, dear. The English user manual, parts manual will be delivered with your items together.
3.Q: How can I install the rail?
A: We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.
4.Q: How to ensure your product quality?
A: The product will be tested before delivery, and the quality certification will be sent you to check. And if any doubt, you can come to our factory and test it by yourself, or you can let some third-parties to do the inspection for you.
5.Q: How about the delivery time?
A: Generally speaking, the delivery time is 45 days. But it depends on the quantity and products requirement, we will try our best to deliver it as soon as possible.
6.Q: How about the payment term?
A: Generally speaking, we accept 50%T/T deposit in advance,the balance 50% is paid by T/T before dispatch. however, 30% T/T deposit in advance,the balance 70% is paid by T/T before dispatch also can be accepted to meet your demand in order to further cooperation. Of course, The L/C also is OK.
7.Q: If meeting urgent demand, what should I do?
A: Please do not hesitate to let us know before making order, we will try our best to shorten the period on the basis of guaranteeing the quality and prioritize your productions’ manufacture.
