Home /Products/Coil Transfer Trolley/Steel Industry Warehouse Material Handling Equipment Cross Rail Foundry Factory Transfer Cart With 75t Loads

Steel Industry Warehouse Material Handling Equipment Cross Rail Foundry Factory Transfer Cart With 75t Loads

1 Set
MOQ
$8,000.00(1 - 2 Sets) $7,700.00(>=3 Sets)
Price
Steel Industry Warehouse Material Handling Equipment Cross Rail Foundry Factory Transfer Cart With 75t Loads
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining, Food & Beverage Shops
Weight (KG): 100
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Warranty: 1 Year
Product Name: Cross Rail Foundry Plant Transfer Cart
Power Supply Mode: Cable Reel/Battery/Diesel/ Conductor Rails
Load Capacity: 1--300t
Application: Steel Industry, Factory, Warehouse, Port
Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Control Mode: Pendant/Remote/PLC Control
Material: Q235
Color: Yellow/Customized
Dimension: Customized
Guarantee Period: 12 Months
Basic Infomation
Payment & Shipping Terms
Packaging Details: The cats body is packed with tarp, and the wheel and parts of the cart will be packed with wooden case.
Product Description
Product Description

Product Application

Our 75t load warehouse handling equipments cross rail foundry plant transfer cart which is a kind of handling tool which can be applied in a large part of fields: metallurgy, shipyard, logistics, construction industry etc. It is our experienced product with solid body and good appearance. The drive power of the  cross rail foundry plant transfer cart is optional: storage battery, electricity, diesel etc all can be designed and manufactured by your unique work task.

If you want to save labor force and improve your work efficiency I recommend the 75t load warehouse handling equipments cross rail foundry plant transfer cart for you. By contrast, it has a lot of advantages: high safety performance, wide range of accessories, large capacity and cost competitive etc.

Main Features

1)Smooth and steady startup with high torque

2) High safety performance in use

3) Solid cart frame and anti-deformation

4) Running distance and time is unlimited

5) The diesel engine rail transfer car can be also used in  a lot worst working condition

Detailed Images

Frame

The frame of the cross rail foundry plant transfer cart is welded by high quality steel. The steel material is Q235B, which has heavy load capacity and long using time.

Wheels

The the cross rail foundry plant transfer cart equipped with the  angle box wheels. The material is cast steel ZG55, and whole quenching. The hardness of wheel tread and inside wheel rims is HB320-380; the depth of quenching is 20mm. There are four wheels on the cart; two of them are the driving wheels.

Buffer

The buffer is used to protect the body of the transfer cart on rial from coilding with hard objects (such as wall or other vehicle). There are two types buffers. one is the spring buffer and another one is welding steel on the cart body.

Hand pendant

The cross rail foundry plant transfer cart is equipped with the pendant to operate the start, stop, move forward and move backward. The pendant can be also called the wired remote controller. You can also choose the wireless controller.

Application Sites

Heavy duty die transprotation


Heavy duty die or machine parts transportation are really difficult problem for factory, although we can use crane, forklifts, or other transporter. But sometimes, those transporters can’t meet the special usage for plants.For example, we need the cargo to lift certain height, traverse low tables and machine, run while working.


Metal Stell Coils and Pipes Transportation

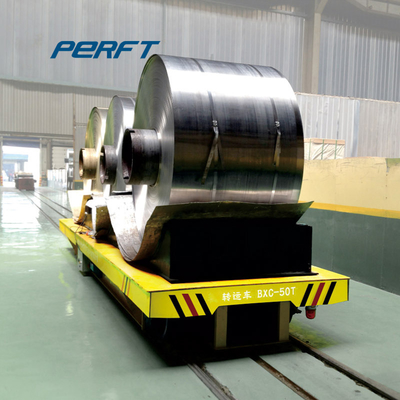

The 75t load warehouse handling equipments cross rail foundry plant transfer cart can be designed to transfer the cylinder products: steel coils, steel pipes and steel tubes etc. The V frame or roller can be added to prevent the coiled products falling down.

Machine Parts Transporter

The cross rail foundry plant transfer cart could be used to transfer heavy duty machine parts for fabrication industry.

Plate Frame Vehicle

The cross rail foundry plant transfer cart can be sued to handle steel plate and machine frame with heavy loads.

Hot Ladle Carrier

The cross rail foundry plant transfer cart can transfer steel and metal for casting and forging industry.

Certifications
Our Service

Pre-Sales Service

* Provide sutiable design accodring the working condition.

* Professional  technology.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Table size
5800mm*2200mm*500mm
Weight
1-15 T



Packaging Details
For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
Packaging
Table Size
7000 (L) * 3000 (W) * 1000 (H)
Weight
8T
Packaging Details
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Related Products

Products Name with link

99.8% Response Rate

Products Name with link

99.8% Response Rate

Products Name with link

99.9% Response Rate

Our Factory

Our factory is located in Xinxiang City, Henan province, where the material handling equipment are manufactured and assembled. Our plant is full service from the mechanical and control engineering to fabrication and machining, we could offer all of those. With the spirit of quality, durability, satisfaction, we have run our plant for over 15 years, and our products have gotten CE, SGS, ISO certificates. With the high quality machine, skilled workers and experience engineers, we will supply the best products for you.
