Industry field/workshop conductor rail line/assembly line/power plastic material handle automated kpd transfer car on rail

1.0 Sets
MOQ
$3,500.00(1 - 4 Sets) $3,000.00(>=5 Sets)
Price
Industry field/workshop conductor rail line/assembly line/power plastic material handle automated kpd transfer car on rail
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining, Other, Advertising Company
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 2 Years
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Warranty: 2 Years
Product Name: Conductor Rail Power Plastic Handle Automated Kpd Transfer Car On Rail
Key Words: 70 Ton Steel Plate Transfer Trolleys
Color: Customized
Application: Industry Field/Working Line/Assembly Line/Workshop
Certificates: CE ISO SGS
Power Supply: Conductor Rail Powered
Running Speed: 0-20m/min
Running Distance: Unlimited
Load Capacity: 1-500 Ton
Operation Type: Hand Pendant+remote Control
After Warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UA
After-sales Service Provided: Field Installation, Commissioning And Training
Basic Infomation
Certification: CE ISO SGS
Payment & Shipping Terms
Packaging Details: The whole dolly with rail will be packed by the tarp, the parts will be packed by plywood case.
Supply Ability: 800 Set/Sets per Year custom rail bogie manufacturer since 2003.
Product Description
Products Description

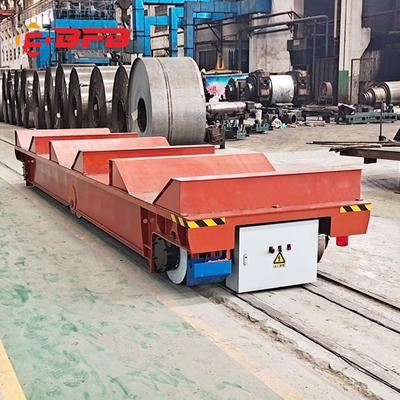

Conductor rail power plastic material handle automated kpd transfer car on rail
The low voltage railways transfer cart delivery usually comes with heavy duty electric rail transfer cart. It provides large load capacity, high frequency of use, long distance transportation. When the running distance is more than 70 meters, more transformers are needed to compensate for the rail pressure drop.

Features for transfer cart:

1. Running distance is unlimited.(More than 70 meters, need to add transformer.) 2. High frequency of use, unlimited running time. 3. The low voltage railways transfer cart can turn and run on "S" or curved tracks. 4. Customized for you.Custom table size, operating speed,load,etc.Meet your requirements.
Diesel Powered Rail Transfer Cart
Exported To Indonesia
RGV Rail Guided Vehicle
Exported To Australia
Cross Rail Transfer Cart With Lifting
Exported To Algeria
Coil Transfer Cart
Exported To Pakistan
Ladle Transfer Cart
Exported To Singapore
Mold Transfer Cart
Exported To Malaysia
Details Images
Advantage
1.   High level automation(self propelled/steerable)
2.   The largest capacity can reach to 500t
3.   Safe parts are installed in the transfer trailer(warning light, e-stop, buffer...)
4.   Robust sturdy trailer frame
5.   AC/DC electric engine , diesel engine or pneumatic engine
6.   Excellent gear reducer and motor with high quality, assemblied together perfectly
7.   Remote control&hand pendant control make the operation more convenient.
8.   The speed can be adjusted
9.   Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment
Product Parameter
Modle
KPD-10T
KPD-30T
KPD-50T
KPD-80T
KPD-100T
KPD-150T
Table Size (m)
3.6*2.0*0.5
4.5*2.2*0.6
5.5*2.5*0.65
6.0*2.6*0.8
6.5*2.8*0.85
10*3.0*1.2
Power
Low Voltage Rail Power
Rail inner Gauge
1435mm
1435mm
1435mm
1800mm
2000mm
2000mm
Wheel Dia.
300mm
400mm
500mm
600mm
600mm
600mm
Running Speed
25m/min
20m/min
20m/min
20m/min
20m/min
20m/min
Motor Power
1.6kw
3.5kw
5kw
7.5kw
11kw
15kw
Max Wheel Load
42.6Kn
110.4Kn
174Kn
278.4Kn
343.8Kn
265.2Kn
Reference weight
4.2t
6.8t
8t
12.8t
14.6t
26.8t
Recommend Rail
P18
P38
P43
P50
QU100
QU100

Remark: The technical parameter of the transfer trailer only can be make reference above.All can be customized manufacturing as per your true demand. Please contact us if any doubt. Our professional engineer will help you solve the transfer problems in any time.

Our Advantages

Our commitment:

· The load-bearing safety factor of the transfer cart is no less than 120%; · Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material; · 16 hours engineering service and 24 hours internet service for our customers; · During the warranty period, if our transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 48 hours; · Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company;
Our Company
FAQ
Q How can I install the rail? A We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
Q How can I operate the transfer cart ? A Please don’t worry, dear friend. The English user manual, parts manual will be delivered with your items together.
Q Whether you can offer customized transfer car? A Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Q Whether there is professional technician assist our installation? A Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
Related Products

Trackless Transfer Trailer               Rail Transfer Trailer                    Coil Transfer Trailer                     Ladle Transfer Trailer

99.8% Response Rate                       98.6% Response Rate                95.3% Response Rate            90.2% Response Rate

These points we need to learn:


1.The load capacity of the transfer trailer is                       ton.

2.The table size is                  mm (L) *                   mm (W)*                    mm (H).

3.The voltage is                 V,                    HZ, 3 phase.

4.The running time is                          hours per day.

5.The running distance is                    m per time.

6.The transfer trailer runs on the rails or common floor?

7.Whether exist turning?

8.Whether has other special requirement?

You can copy the above options and click here to select your specific requirement for the transfer trailer to send us.And then the proper solution and price will be sent to you.
