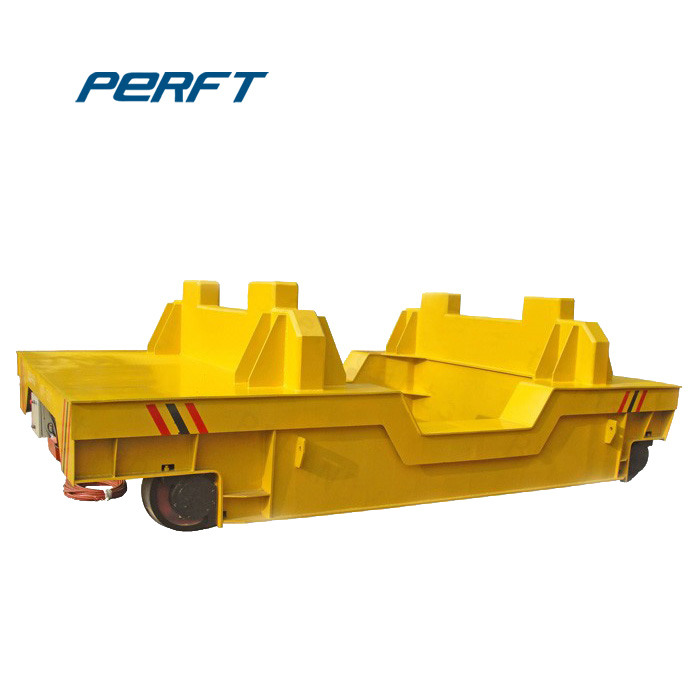

Industrial Sized Industry Ladle Chute Bucket Transfer Trolley

1 Set
MOQ
$6,000.00(1 - 1 Sets) $5,800.00(2 - 4 Sets) $5,600.00(>=5 Sets)
Price
Industrial Sized Industry Ladle Chute Bucket Transfer Trolley
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining
Warranty: 2 Years, 24 Mounth Long Guarantee
After-sales Service Provided: Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Product Name: Ladle Scrap Bucket Transfer Cart
Application: Industrial Filed
Capacity: 1-300ton
Material: Q235
Power Supply: Low Voltage Rail Powered
Certification: CE ISO SGS
Packing: Packed
Running Speed: 0-20m/min(adjustable)
Basic Infomation
Certification: CE ISO SGS
Payment & Shipping Terms
Packaging Details: The cats body is packed with tarp, and the wheel and parts of the cart will be packed with wooden case.
Supply Ability: 100 Set/Sets per Month
Product Description




 Industry Hot Metal Ladle Scrap Bucket Transfer Cart



 Product Description

  • The Industry Hot Metal Ladle Scrap Bucket Transfer Cart is powered by the rail, the 380V AC power supply is reduced by the transformer to a 36V safe AC voltage.
  • According to work requirements, the load is less than 50 T and connected to the two rails, the 36-volt AC is introduced into the vehicle electrical box through the wheels. The control system converts to DC, and controls the DC motor start, stop, advance, retreat, and adjustment speed of the vehicle.
  • If the load is more than 50 T, a power supply rail needs to be set up in the middle of the track, and the 36AC is divided into three tracks. The 36AC is introduced into the vehicle electrical box through the power take-off column, Upgraded to 380V by the on-board transformer to provide the AC motor. Install inverter to achieve AC motor speed control requirements.
  • Industry Hot Metal Ladle Scrap Bucket Transfer Cart can be used in vertical, s-track, curved rails and high temperature applications.
  • They can be wired or wirelessly operated, also can be equipped with a PLC system for full automation.
 Part show & Detail Images











  • Can running indoor or outdoor,on rail or cement floor;
  • Suitable for short distance, high frequency, long time, uninterrupted working environment;
  • Anti-explosion, anti-high temperature, apply to various occasions;
  • No strict requirement for the construction of the railway;
  • No limit of running hours safe and convenient operation;
  • Price is low, the structure is simple easy to maintain;
  • Long service life and excellent performance in workshops;
  • Equipped with hydraulic lift system for more purpose;
Parameter & Components













Model

BDG-2t

BDG-20t

BDG-50t

BDG-100t

BDG-150t

Rated Load(t)

2

20

50

100

150

Table Size(mm)

Length(L)

2000

4000

5500

6500

10000

Width(W)

1500

2200

2500

2800

3000

Heigth(H)

450

550

650

850

1200

Wheel Base(mm)

1200

2800

4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

2000

2000

Wheel Diameter(mm)

270

350

500

600

600

Wheel Quantity

4

4

4

4

8

Ground Clearance(mm)

50

50

50

75

75

Running Speed(min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kw)

0.8

2.5

5.5

11

15

Transformer Power(KVA)

3

6.8

10

30

30

Transformer Quanity

1

1

1

1

1

Running Distance(m)

70

70

50

50

50

Max Wheel Load(KN)

14.4

77.7

174

343.8

265.2

Reference Weight(t)

2.8

5.9

8

14.6

26.8

Recommended Rail Model

P15

P24

P43

QU100

QU100



Product Processing & Equipment

  Customer Visit & Cooperative Company















Packing & Delivery



  • Our product not only have sold across china, also exported to US, Germany, India, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc all over the world.
  • The cats body is packed with tarp, and the wheel and parts of the cart will be packed with wooden case;
  • According transfer carts table size and quantity, cart will be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
  • The delivery time is around 30 days after clients pays the perpayment;
 Our services



  • Our commitment:
  • The load bearing safety factor of the Handling Vehicle is no less than 120%;
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material;
  • 16 hours engineering service and 24 hours internet service for our customers;
  • During the warranty period, if our Coil transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 48 hours;
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company;



Our Company & Certificates






  • Our factory is located in Xinxiang City, Henan province, have15 years of transfer cart industry experience. Our company passed ISO9001 Quality management system and got the CE, SASO, SGS certificate.
  • we can produce all kinds of transfer cart from 1-1300 tons, our main products including BDG series Transfer cart BJT cable drum series Transfer cart , BHX safety sliding line series Transfer cart , BXC battery series Transfer cart , BTL towed cable series Transfer cart , BP non-power series Transfer cart , BQY train towed series Transfer cart , BWP trackless series Transfer cart  and special Transfer cart , such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
 FAQ
  • 1.Q: What term of payment do you accept?
  • A: we accept 30% T/T as deposit, 70% T/T before delivery. we also accept L/C.
  • 2.Q: What is you delivery time?
  • A: We will delivery the transfer cart according to you order in 45 days, after we accept the prepayment.
  • 3.Q: How do transfer cart been shipped?
  • A: We export the transfer cart by sea or train with full container, LCL or in Bulk.
  • 4.Q: Do you have quality assurance for transfer cart?
  • A: Yes, we have 2 year of assurance.
